A923T High Precision Front/Back & Orientation Wrap-around Labeling System

High Precision Front/Back & Orientation Wrap-around Labeling SystemVideo please login to watch video.

Using a synchronized swing-hand secondary alignment mechanism to ensure extra precision in the normal front/back labeling mode for oval, rectangular, and other shaped bottles. Also equipped with an added-on turn-table for stationary bottle rotation to achieve wrap-around labeling on round bottle with orientation.

Specially designed bottle alignment mechanism to ensure proper alignment for the difficult-to-align bottles such as large curvature oval or other irregular shaped bottles.

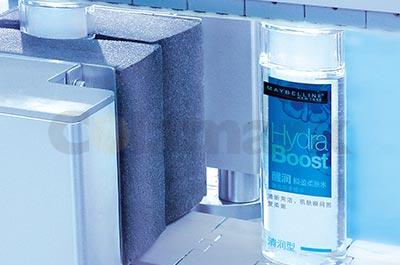

Synchronized swing arm label hold-down mechanism to adapt label on to the bottle surface perfectly and wrinkle free.
Various options including secondary label hold-down, integrated machine enclosure, wrap-around station etc. for the higher end requirements.
Single label or dual label labeling Special registration sensor to catch the orientation feature of the bottle precisely.
Holding the bottle for rotation at 3 points to ensure alignment accuracy.
Various coding devices for synchronized online coding: hot stamping, continuous inkjet, thermal inkjet, laser, thermal transfer etc. to meet the different coding requirements of the user.
Various inspection devices for missing label, missing code, and wrong code detection. Defective items will be rejected automatically to a separate collection bin.
Touch panel HMI: User friendly and easy-to-use. Provides up to 50 sets of program memory, comprehensive help menu, and diagnosis support.

Model：	A923T
Name：	High Precision Front/Back & Orientation Wrap-around Labeling System
Capacity：	20-200pbm
Weight：	650kg
Electricity:	220VAC±5% 50Hz 2.5kW
Dimension(for reference)：	(L)3,777×(W)1,390×(H)1,600 mm
Please select the PDF file link for specification detail after sign in.
