Bingo Vertical Cartoning System

Vertical Cartoning SystemVideo please login to watch video.

BINGO is designed to meet your present and future cartoning demand. BINGO unloads the cartons from the magazine, opens the carton and closes the bottom by itself. BINGO allows your operators to load the items from top, and closes the top flap afterward. Standard U shape conveyor can accomodate two workers to work together. With extended U shape conveyor, you may also run the machine at higher speed with three to four workers to handle insertions. If you decide to fully automate the process, you may make use of robotic arm to take care of product inserting process. BINGO is flexible to meet most of the industrial cartoning requirements.

BINGO is easy to adjust, so the changeovertime is short.
The design fits in with the needs of theindustrial operations.
Continuous motion and stepless speedcontrol offer smooth and stable machine operation.

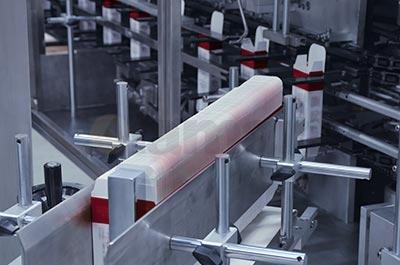

Highly effective carton pick up and openmechanism have dual suction cups option for tall carton.
Optional motor driven top cover mechanismcan lift up the work station easily, so that change-over process is furthersimplified.
JOG switch offers extra benefits for change-overs,trouble shootings or maintenance services.
Optional anti-scratch treatment on cartontransports can reduce scratch on carton.

Model：	Bingo
Name：	Vertical Cartoning System
Capacity：	25 cartons per min & above
Weight：	500kg
Electricity:	380V 50/60HZ 1.5kW
Dimension(for reference)：	3,210mm L x 1,470mm W x 1,920mm H
Please select the PDF file link for specification detail after sign in.
